bbc Specialized Services Provided to the Aviation & Aerospace Industry
Industrial hard chrome plating, plasma flame spray, flame spray, twin wire arc spray, magnetic particle inspection and fluorescence penetrant inspection processes are the FAA approved specialized services used by bbc for processing of aviation related components. bbc is FAA REPAIR STATION #BK3R400L.
bbc manuals have been developed in accordance with the requirements of the Federal Aviation Regulations Part 145 (FAR 145)
Listed below are the FAA approved Limited Ratings – Specialized Services provided by bbc.
bbc Limited Ratings – Specialized Services
- bbc Specialized Services Ratings:
Specifications
- Chrome Plating
AMS 2460 as revised
AMS 2406 as revised
- Metal Spray / Plasma Spray
AMS 2437 as revised
- Magnetic Particle Inspection
ASTM E 1444 as revised
- Liquid Penetrant Inspection
ASTM E 1417 as revised

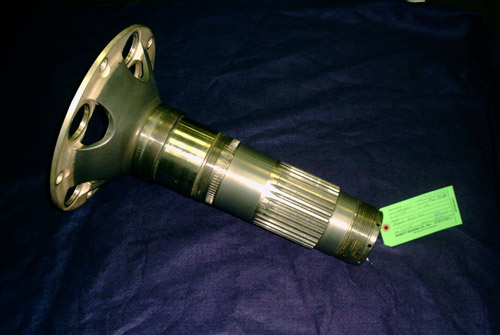

Aircraft and aviation components include; prop shaft, rear carrier, front bearing support, turbine tie bolt, main drive gear, rear turbine bearing cage, reduction gearbox shafts, outer shaft, prop brake outer member, pinion gear and many other components are processed utilizing bbc FAA approved Limited Ratings – Specialized Services.
Contact bbc to discuss if we can provide your aircraft and aviation component processing services utilizing bbc Limited Ratings – Specialized Services.
Sample Aviation & Aerospace Component Projects:
[click on thumbnail to enlarge]
- Component Name: Turbine 1st Stage Wheel
- Approximate size: 12″ diameter
- Process / Repair: Twin Wire Arc Spray stainless steel OD fit.

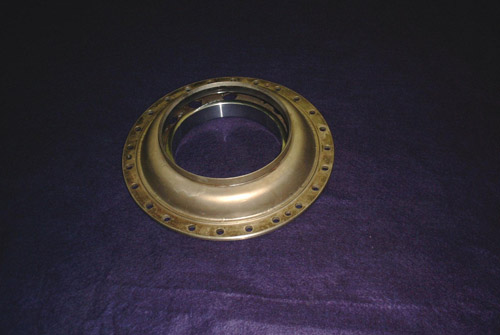

- Component Name: Front Bearing Support
- Approximate size: 9″
- Process / Repair: Hard Chrome Plate and Finish Grind ID bore.

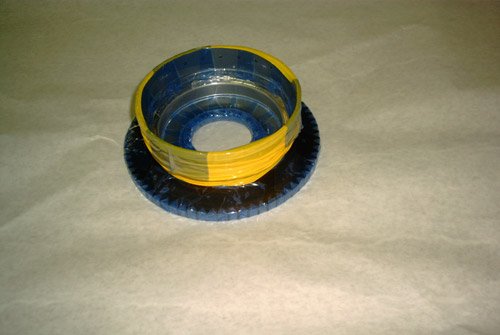

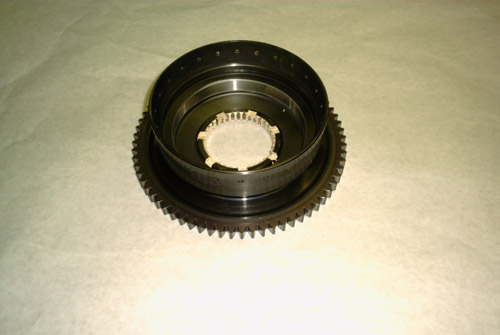

- Component Name: Prop Brake
- Approximate size: 7″
- Process / Repair: Masked for Hard Chrome Plating of ID bore

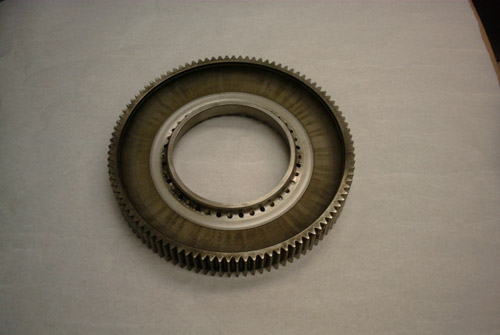

- Component Name: Main Drive Gear
- Approximate size: 17″ diameter
- Process / Repair: Hard Chrome Plate ID
- Component Name: Rear Carrier
- Approximate size: 14″ diameter
- Process / Repair: Hard Chrome Plate OD fit
